Open Skinner Box – PyCon 2014

May 27th, 2014 | Posted by admin in automation | code | cute | domestic life | Internet of Things | Open Source | OpenCV | pics or it didn't happen | PyCon | python | RaspberryPi | Uncategorized | vermin - (Comments Off on Open Skinner Box – PyCon 2014)

I’ve been hacking like a fiend on nights and weekends for the past few months trying to get ready for PyCon. This year I wanted to do an introductory talk about how you make internet enabled hardware using Python. The first step of this process is figuring out what hardware you want to make. I decided I wanted to do something for my pets as I am splitting my time between Boston and San Francisco and I can be gone for a week at a stretch. My friend Sophi gave a great talk at last years Open Hardware Summit about creating a low-cost nose poke detector for research and I decided I could sorta do a riff (in the jazz sense) on that idea. I decided to create an Open Skinner Box using a RaspberryPi and a few parts I had around the house.

Open Skinner Box in situ

Open Skinner Box in situ

A Skinner Box, also called an operant conditioning chamber, is a training mechanism for animal behavior. Generally a Skinner box is used to create some behavior “primitives” that can then be stringed together to do real behavioral science. The most basic Skinner Box has a cue signal for the animal (usually a light or buzzer), a way for the animal to respond to the cue (usually a nose poke detector or by pressing a lever), and a way to reward the animal usually using food. The general procedure is that the animal hear’s or sees the cue signal, performs a task, like pressing the button, and then gets a treat. This is not too far off with the training most people do with their pets already. For example, I have the rats trained to come and sit on my lap whenever they hear me shake a container with treats.

The cool thing about a Skinner box is that they are used to do real science. As a toy example, let’s say you wanted to test if some drug may have an adverse effect on learning. To test this scientifically you could have two groups of rats, one set of rats would get the drug and the others wouldn’t. We would then record how long it took the rats to learn how to use the Skinner box reliably. The scientist doing the experiment could then use this data to quantify if the drug has an effect and if that effect scales with the dosage of the drug.

So what does it do?

I wanted to create not just a Skinner Box but a web enabled Skinner Box, a sorta internet of things Skinner Box. So what features should it have? I came up with the following list:

  1. I should be able to see the rats using the Raspberry Pi’s camera.
  2. The camera data should be used to create a rough correlate of the rat’s activity.
  3. The box should run experiments automatically.
  4. I should be able to buzz and feed the rats remotely.
  5. The web interface should give a live feed of all of the events as they happen.
  6. The web interface should be able to give me daily digests of the rats activity and training.

The Mechanical Bits

Mechanical Bits of the Open Skinner Box

Mechanical Bits of the Open Skinner Box

To build the Skinner Box I got some help from a mechanical engineer friend of mine. He is a 3D printing whiz and designed the mounting brackets, food hopper, and switch mechanism for the Skinner Box. One of the cool things I learned in this process was how to use threaded brass inserts for mounting the parts to the cage and attaching the different parts to one another. There is a great tutorial here as well as this video. The source files for all the parts are now up on thing-a-verse if you would like to build them.

The Electrical Bits

Skinner Box schematic - originals are in the github repo for the project.

Skinner Box schematic – originals are in the github repo for the project.

For the electrical components in the project I used the Raspberry Pi’s GPIO pins to control the stepper, read the switch, and run the buzzer (although one could easily use the audio out). I opted to run the stepper using the RaspberryPi’s 5V source and it seems to have just enough juice to run the stepper motor. The stepper is controlled via four GPIO pins (two for each coil). The GPIO pins and the 5V source are connected to a LN2803 Darlington array that shunts the 5V source to the stepper based on whether the GPIO pins. In the next revision I will probably use a separate stepper driver and a beefier stepper like a NEMA 17. I soldered everything to a bread board for this revision but I will probably get PCBs fabricated for the next revision. When I was soldering and debugging the board I found ipython super useful. I could send each of the GPIO pins high or low and then trace the path with my multimeter. I have put both the Fritzing CAD files and a half-complete bill of materials up on github if you would like to replicate my work.

Finished Open Skinner Box electrical components.

Finished Open Skinner Box electrical components.

The Software Bits

Because I was presenting this project as an intro lesson PyCon I wanted to use as many python libraries as possible. Right before the conference I open-sourced all of the code and put it in this github repository. Some of the components I used, for example matplotlib, are sub-optimal for the task but they get the point across and minimized the amount of java script I had to write. The entire app runs in a bottle web server with the addition of greenlets to do some of the websocket work. I set the webserver up to use Bootstrap 2.3.2 to make everything look pretty. For data persistence I used MongoDB. While you can get Mongo to build and run on a RaspberryPi in retrospect I really should have dug into the deep storage of my brain and used something like PostgreSQL. Mongo is still too unstable, and difficult to install on the Pi.

The general theory of operation is that there is the main web server that holds four modules, three of which are wrapped in a python thread class. These modules are as follows:

  1. Hardware Interface – uses GPIO to buzz the buzzer, monitor the switch, and run the stepper.
  2. Camera Interface – uses OpenCV, PiCamera, and Numpy to grab from the camera, save the images, and monitor the activity.
  3. Experiment Runner – looks at the current time and decides when to begin and end experiments (e.g. it rings the buzzer, waits for the rat to press the lever, and dispenses a treat.
  4. Data Interface – Stores event,time stamp pairs to Mongo, does queries, and renders matplotlib graphics

To get all of the modules to communicate cleanly I used a simple callback structure for each module. That is to say each module holds a list of functions for particular events, and when that event happens the module iterates through the list and calls each function. For example, whenever there is a button press the button press loop calls the callback function for the data interface to write the event to the database, a second callback tells the experiment runner that the rat pushed the lever, and a third callback renders the data to the live-feed websocket.

Rat Stats -- need to replace this with some Javascript rendering.

Rat Stats — need to replace this with some Javascript rendering.

All routes on the webserver basically point to one or more of the modules to perform a task and create some amount of data to be rendered in the bottle template engine. For example for activity monitor page I have the DataInterface module query Mongo for every activity event in the past 24 hours and I then render it using matplotlib and save the result to a static image file. The web server then renders the template using the recently updated static image file. While this works, matplotlib is painfully slow. To control the feeder and buzzer remotely I simply have post events that call the dispense and buzz methods on the hardware interface. The caveat here is that these methods are non-block and are guarded simply by a flag. So for example, if you hit the feed button multiple times in a row really fast only the first press has an effect.

Skinner Box Live Shot

Skinner Box Live Shot

The camera module seems to work reasonably well for this project and I amazed by the image quality. The only drawback with the camera module is that basically you have to choose between still images and a stream of video data right now there is now really good way to both debuffer the camera stream and process the individual frames. I opted to take the less complex route of just firing the camera for still frames at the fasted rate it would support which is about once a second. Because of processing limitations on the pi I need to scale the image down to about 600×800 to do my motion calculation. For the motion calculation I just perform a running frame difference versus a more computationally costly optical flow calculation. This is a reasonably good approximation of net motion but it is subject to a lot of spikes when the lighting changes (e.g. when you turn the lights for the room on). Additionally in my haste of getting this project up and running I opted not to put a thread lock around the camera write operation. This means that sometimes when you visit the live image page you get a half finished frame. This is something that I will address soon.

Live Events Feed

Live Events Feed

Putting it all together.

I have tested the system on the rats with some limited success (see the videos below). There are some kinks I still need to work out that prevent me from running the system full time. For example, the current food hopper wheel jams fairly frequently and so farm seems to only deliver food 2-3 times before jamming. Also the buzzer I used is exceptionally annoying, and since the rats live in my bedroom I don’t want to run protocols at night when the rats are most active(rats a nocturnal). Moreover, I don’t think my current pair or rats is suitable for training. I have one exceptionally old rat (almost three to be exact); and while she is interested she lacks the mobility to perform the task. The other rat has been one of the more difficult rats I have tried to train. Normal rats can learn to come when called (or when I shake the treat jar) this rat is either too timid or too ambivalent to care most of the time.

Building a Better Mouse Trap

The Skinner box runs reasonably well at the moment but there are quite a few things I would like to do to make it more user friendly and robust. Ultimately I would like to harden the designs and then turn them over to someone to commercialize. As with an engineering task design is a process, and you get a kernel of working code and then improve and build upon it until you finally reach a working solution. Here is what I would like to do in the next revision:

  1. Replace Mongo with Postgre SQL.
  2. Replace Matplotlib with a javascript rendering framework
  3. Fix the camera thread lock issue and create a live stream of video and also store images to the database.
  4. Move the food hopper to an auger based design to minimize jamming.
  5. Add a line break sensor to make sure the rats get fed from the food hopper.
  6. Add an IR LED illumination system for the camera and add a signal LED to work with the buzzer.
  7. Improve some of the chart rendering to support arbitrary queries (e.g. how well the rats did last week over this week.
  8. A scripting language for the experiment runner. Right now the experiment runner buzzes and waits for a button press, but really I think the rats should start with random food deliveries and work up to the button press task.

Fish Eye Lens Dewarping and Panorama Stiching

August 15th, 2013 | Posted by admin in code | computer vision | OpenCV | python | SimpleCV | Uncategorized - (Comments Off on Fish Eye Lens Dewarping and Panorama Stiching)
The entire panorama stitching process as one big image.

The entire process as one big image.

I was challenged to see if I could create 360 degree view panoramas from a series of fish eye images taken at right angles to one another working from this tutorial. I modified the code from my 360 lens dewarping project to create the code for this project which you can check out here. There are roughly two types of fisheye images, circular fisheye lens that map a sphere onto the image plane, and full frame fisheye lens that map the input image to the entire rectangular image plane. The data I was working with was from a circular fisheye, which is significantly easier to reason about.

There are a couple of different ways you can approach the problem of fisheye lens dewarping. The first, and probably more robust approach is to develop a camera lens model that accurately represents the fish eye lens distortion, and apply that lens dewarping to the image. In the absence of a calibration data, particularly for full frame fisheye’s, you would then need to manually tune the camera model parameters to dewarp the image, or use some of the image data to get a back of the envelope approximation of the camera parameters. The second, and in my opinion the easier, albeit slightly less robust approach, is to create a mapping from the output image pixels in terms of phi and theta in a circular coordinate system, and map that to pixels in the input image. The basic idea is that in the output image each pixel represents some steradian on the input image. The best way to think about a steradian is as a “pixel” on the sphere, or the square mapped out by latitude and longitude lines. Each steradian then maps to a point on the image plane, which you can calculate by doing a spherical to Cartesian conversion and dropping the value that is in the normal to the image plane.

Dewarped image on the left and input circular fisheye image on the right.

Dewarped image on the left and input circular fisheye image on the right.

For example, in my code, I first create an output image and assume each x and y position on the image maps to somewhere roughly between 0 and 180 degrees (0,pi) for both phi and theta. In my model the direction pointing straight out of the camera is called y, so I then do a spherical to Cartesian conversion assuming a unit sphere. Since the unit sphere is at the origin, I shift the sphere and rescale it to be of unit length, and then multiply the result by the input image dimensions. An easier way to think of it is this:

Destination image pixel (X,Y) –> scale to unit length –> convert to between zero and pi –> do spherical to Cartesian conversion –> rescale to get values between 0 and 1 –> multiply by the input image dimensions to get input pixel (X,Y).

The map is a bit tedious to create, but once you have it, OpenCV can really quickly push pixels around and give you a result.

Panorama dewarped from four fish eye images.

Panorama dewarped from four fish eye images.

The next step was to do the panorama stitching. To do this I first matched ORB keypoint between two successive pairs of images. Since I knew the images were vertically aligned, all I needed to calculate was the x value that is the horizontal offset. To do this I used the median x difference between the two sets of points (the median in this case acts as a poor man’s RANSAC to remove outlier matches). I then used this x offset to construct an alpha mask that I could use to smoothly blur the two images together. I played with this for a little while and I found a nonlinear mapping seemed to work a lot better. There are some problems with the images as they don’t seem to be taken at the exact same time, but for a half a day’s worth of work I am very pleased with the results.

Dewarped Panoramic Images From A RaspberryPi Camera Module

August 12th, 2013 | Posted by admin in code | computer vision | demo | pics or it didn't happen | python | RaspberryPi | signal processing | SimpleCV | Uncategorized - (Comments Off on Dewarped Panoramic Images From A RaspberryPi Camera Module)

I got back from my cross country trip and in my mail box was a brand new RaspberryPi camera module from Element14. I needed a chill night at home so I setup the camera module and decided to see what I could do with it. After upgrading my pi to the latest version of wheezy and doing the requisite setup for the camera and the wireless card I was getting images. The setup for the camera module is fairly easy and wheezy has a few really nice command line programs for capturing, compressing, and delivering images to a remote host. The RPI foundation has a nice tutorial here. I am *extremely* impressed with the quality of the RPI camera module, the image quality far exceeds that of the built-in cameras on my macbook air and my lenovo laptop. At full resolution the camera module’s image quality is akin to a point and shoot camera from a few years ago. Not a bad feat for $20.

I wanted to do some interesting processing from the camera images. Given the performance of the pi using python I opted to look for an approach where I would use the pi as a dumb ip camera and process the images on the remote host. I remembered that I had a Kogeto 360 degree camera for iPhone in my basement. I don’t have or want iPhone so the lens was useless to me as is. After some careful twisting and prying I was able to remove the lens from the mount. I decided to whip up a quick adapter using just some silly putty and cardboard.

Parts for my hacked camera shim.

Parts for my hacked camera shim.

Since my RPI camera module is just loose, and not mounted to anything, I needed a non-destructive and quick way to attach the lens to the camera. I created three cardboard shims using my pocket knife, one that fit snugly to the camera, one that fit snugly to the protrusion on the lens, and one to space the two parts out. I used silly putty to “glue” the boards together while allowing me to slide them around to get the alignment just right. Silly putty works great for this as it is non-conductive and easy to pick out the RPI camera board without breaking it. Also cleans up fairly easily. After a little of trial and error I got a working prototype.

The final assembled lens shim. Hopefully I can CAD up a permanent one and 3D print it soon.

The final assembled lens shim. Hopefully I can CAD up a permanent one and 3D print it soon.

I switched on the raspberry pi and started getting images. The 360 degree camera doesn’t use the full image frame. Instead it projects a donut onto the image plane that we can dewarp to get a full panoramic image. The image below shows most of an input image with the dewarped result overlaid.

The input image with the dewarped image over laid at the bottom.

The input image with the dewarped image over laid at the bottom.

You can see that input image has a basically a “doughnut” where the actual image appears, the rest is just noise. You can see a minute of raw camera video here to get a better sense of what I mean. The trick to do the dewarping is to take that doughnut, put a slice in it, and uncurl it to a rectangle that looks like a normal image. To do this you need to figure out a couple things, the center of the doughnut, the radius of the “doughnut hole”, and the outer doughnut radius. Once you have this stuff the mapping for the camera is basically translating every point in the destination image to a point in the source image using a radial (r,theta) representation. I posted the notes from my notebook to give you a better idea of what I did.

Doing the doughnut mapping from the destination image to the source image.

Doing the doughnut mapping from the destination image to the source image.

I coded this all up in python using the cv2.remap function. For this function you just create a list of every pixel in your destination image and tell it where to point to in the source image. It takes awhile to create the map because I used naive python looping, but once the map is created the mapping can be done in nearly real time. I tossed the code into this github repo. It took me a bit of time to figure out that mapping was from destination to source versus the other way around. I am also still having some problems with encoding the output video so I just dumped them to file and had ffmpeg stitch them back together into a video. Here is my first draft of the code (a bit of a hack).

I used a quick command line ffmpeg call to stitch the still frames I produced back into a video so I could post it YouTube. This is a really neat feature of ffmpeg that has saved me quite a few times. the raw command is (avconv -r 32 -f image2 -i ./FRAME%05d.png -b:v 1024K output.mpeg).

Hopefully when I get some time later next week I will modify this script to perform dewarping on live streams from the RaspberryPi. I also would like to fab a legitimate adapter using a 3D printer. If I manage to get that done I will toss the design files in the github repo and thingaverse.

Hack the Museum

July 29th, 2013 | Posted by admin in audio | code | Detroit | Fun! | python | Uncategorized - (Comments Off on Hack the Museum)

My friend talked me into participating in the HackTheMuseum hack-a-thon at the Henry Ford Museum during the Detroit Maker Faire. The hackathon was intended to feature a new API for the museum’s digital assets. We did a recon trip the week before the hack-a-thon and outlined what we thought would make a great app. The newer exhibits at the Henry Ford are actually really slick. You can search through the physical and digital collection and curate collection via large touch screens installed in the museum for later retrieval at home. After our recon trip we distilled a few key design elements that we wanted in our app.

  1. We specifically didn’t want to duplicate the functionality of the existing infrastructure. Given the time constraints we really couldn’t do it better.
  2. We noticed a couple of visually impaired visitors who could of benefited from audio tours. The Henry Ford Museum doesn’t currently have audio tours like a lot of other tours.
  3. We didn’t want to write a mobile application. People go to museums to experience artifacts they can’t see anywhere else. The museum should be for enjoying these objects, not staring face-down into a cell phone or iPad.
  4. The museum sees a wide variety of visitors. Visitors of all ages, nations, ages, races, capabilities, and socio-economic status. We didn’t want to assume that our users had expensive cellphones with equally expensive data plans, or the tech savvy to operate them. My experience is that my parents, the kids I couch, and my family can all operate mp3 players and MMS text messages. We wanted to stick to a medium that could see wide adoption.
  5. Every good idea we had some sort of mapping element which really isn’t available in the Henry Ford Museum API. Every experience we could think of started with, “Where is cool thing X at the museum”. Having a map is an indispensable part of the museum experience. There is simply too much to see in one day, you pick the stuff that really interests you.

The night before the hack-a-thon I thought up an idea that I pitched to the team. The idea was to create custom maps and audio tours for the museum and then deliver them via a diversity of mediums. Have a smartphone? Great, here is a map image or dynamic map and a SoundCloud link / dynamic HTML audio. Have a dumb phone? Get the content delivered via SMS message. Are you a teacher who wants to customize a visit? Awesome, dumb mp3 players are dirt cheap, you can get a set for a classroom for half the price of one iPod. You can load up a tour and hand it over to the kids.

When the hack-a-thon started we decided to narrow our focus to a single exhibit so we could do the mapping and build out the content at least reasonably well. We needed to manually determine the positions of a bunch of exhibits. I started out by figuring out how to do the text to speech. My first task was to get the data I wanted to put in the tour from the museum API. After a bit of massaging I was able to pull out the data I wanted from the API. I settled on the exhibit location descriptions, display titles, the various abstracts/copy about the artifacts, and the thumb nail images. I wrapped this into a function that would pull down this info based on an id number. I then made another function that would stitch together various bits of text into a cohesive body text.

Python is my preferred hacking language of choice so I needed to figure out how to take the large body of text I could generate and spit it out as text to speech. There is pyttsx for text to speech, but it only outputs to the sound card. You could probably snag the raw wav data with a bit of hacking but that I would take awhile. There are also a bunch of APIs but I figured I could do decent job locally, also I had hopes to compose the text to speech with audio from the API but that never materialized. I decided to just use the python subprocess module to call the espeak linux command line utility to generate the speech wav files. I then ran ffmpeg over the raw wav files to convert them to Mp3. Finally I used the SoundCloud API to upload the output WAV file. Pretty? No, but it worked, that’s why they call it a hack-a-thon.

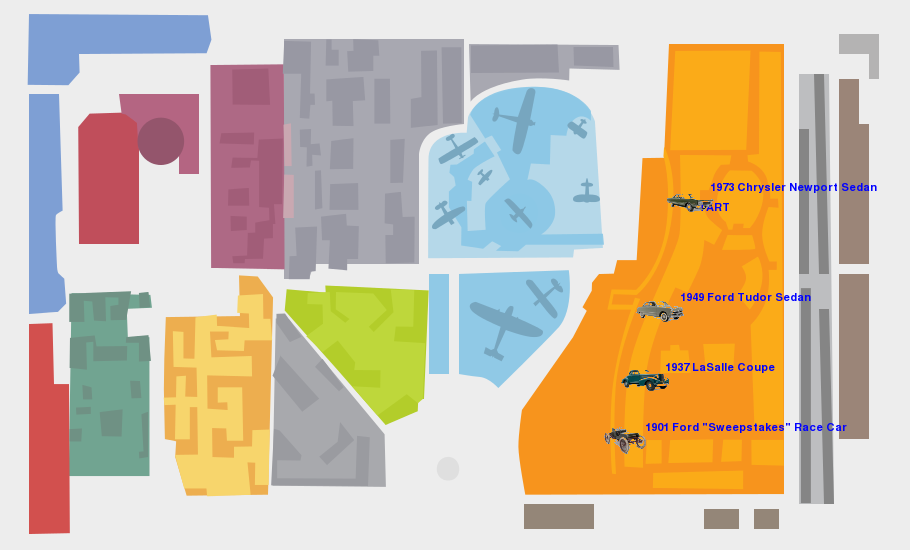

An example "hacked" map of a custom museum tour.

An example “hacked” map of a custom museum tour.

With the sound data taken care of I then proceeded to work on mapping. I had already pulled down the exhibit thumbnails so I all I had to do to position them on map was to map the exhibit location to the map. I just tossed our hand rolled map points into a python dict keyed on ID and made it a class member. Serious duct tape coding to be sure, in real life the museum would provide this info or you could toss it in your favorite data store. I then used a bit of SimpleCV magic to build alpha maps of the thumbnails and blit them onto the map. I also played with generating an animated gif of the the tour, but a lot of gifs were really big even after I ran them gifsicle. Gifs don’t render on old cell phones and imgur kept shitting the bed on big files so I cut it.

To deliver the content I used the Twitter API and the Twilio API. Twilio delivers data via SMS but not MMS so I was also hoping to use the MoGreet API to deliver images and sounds directly but I just plain ran out of time. I had some bits of code for the Twilio API so I just stuck with it. The last step was to link all of the front end UI with the back end bits. To do this I just used the python BaseHTTPRequestHandler and HTTPServer.

Like I said, it isn’t pretty but it works. That is why they call it a hack-a-thon. You can check out the code on Github. The Henry Ford Museum Asset API is only available within the museum so I grabbed a screencast video (sorry no audio). You can also hear some of the auto generated audio above.

We did reasonably well all things considered. We tied for second place at the hack-a-thon and I got a swell hard hat and few tickets to the Henry Ford Museum and Greenfield Village. The entire team did a great job. It was our first hack-a-thon ever, and we were reasonably front end heavy, and I have a minimal back end experience.
